Environmentally controlled Atomic Force Microscope


  • Operating mode: touch mode, tap mode
  • XY scan range: 50*50um, optional 20*20um, 100*100um
  • Z scan range: 5um, optional 2um, 10um
  • Scan resolution: Horizontal 0.2nm, Vertical 0.05nm
  • Sample size: Φ≤68mm, H≤20mm
  • Specification

    1. Integrated design of optical metallographic microscope and atomic force microscope, powerful functions

    2. It has both optical microscope and atomic force microscope imaging functions, both of which can work at the same time without affecting each other

    3. Can work in ordinary air environment, liquid environment, temperature control environment and inert gas control environment at the same time

    4. The sample scanning table and the laser detection head are designed in a closed type, and special gas can be filled and discharged inside, without adding a sealing cover

    5. The laser detection adopts a vertical optical path design, and can work under liquid with the gas-liquid dual-purpose probe holder

    6. The single-axis drive sample automatically approaches the probe vertically, so that the tip of the needle is scanned perpendicular to the sample

    7. The intelligent needle feeding method of the motor-controlled pressurized piezoelectric ceramic automatic detection protects the probe and the sample

    8. Ultra-high magnification optical positioning system to achieve precise positioning of probe and sample scanning area

    9. Integrated scanner nonlinear correction user editor, nanometer characterization and measurement accuracy better than 98%

    Specifications:

    Operating mode touch mode, tap mode
    Optional mode Friction/Lateral Force, Amplitude/Phase, Magnetic/Electrostatic Force
    force spectrum curve F-Z force curve, RMS-Z curve
    XY scan range 50*50um, optional 20*20um, 100*100um
    Z scan range 5um, optional 2um, 10um
    Scan resolution Horizontal 0.2nm, Vertical 0.05nm
    Sample size Φ≤68mm, H≤20mm
    Sample stage travel 25*25mm
    Optical eyepiece 10X
    Optical objective 5X/10X/20X/50X Plan Apochromatic Objectives
    Lighting method LE Kohler Lighting System
    Optical focusing Rough manual focus
    Camera 5MP CMOS sensor
    display 10.1 inch flat panel display with graph related measurement function
    Heating equipment Temperature control range: room temperature ~ 250 ℃ (optional)
    Hot and cold integrated platform Temperature control range: -20℃~220℃ (optional)
    Scan speed 0.6Hz-30Hz
    Scan angle 0-360°
    Operating environment Windows XP/7/8/10 operating system
    Communication Interface USB2.0/3.0

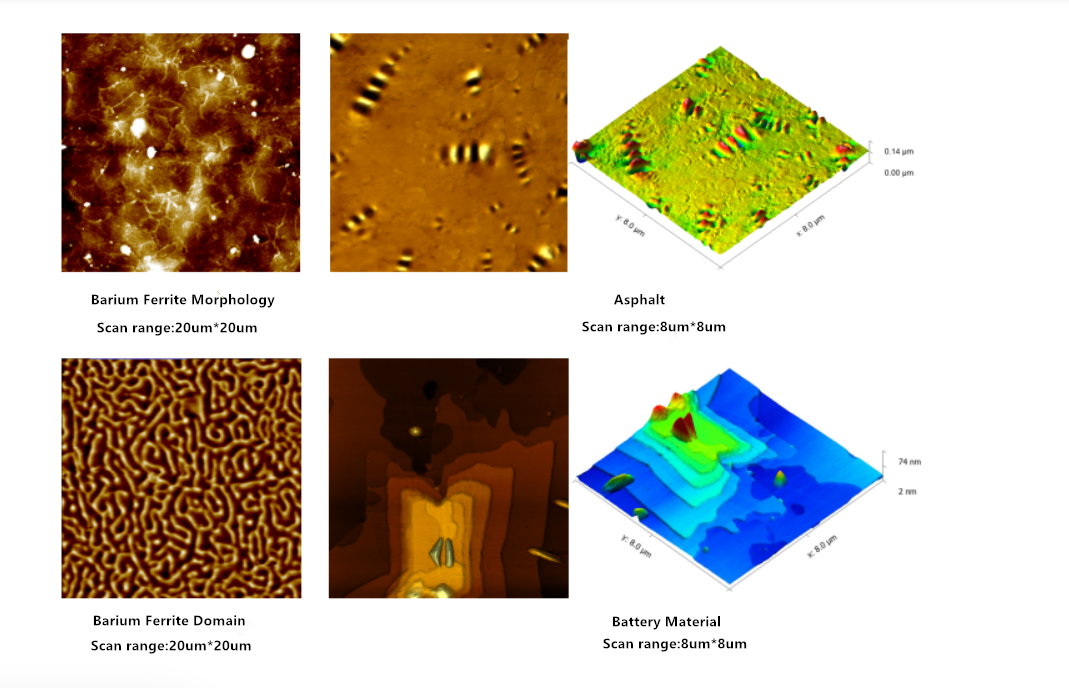

    微信截图_20220420171438_副本
